在可视化编辑器中，组件的属性可在属性窗口中查看和编辑（大部分）。
•图像采集属性
•视觉功能的属性
•输入的属性
•输出的属性
•变量属性
•线路属性
本节介绍属性窗口的一般操作。
排序
属性可按类别或字母顺序排序。可以在属性窗口的页眉处来回切换。
突出显示修改后的属性
选定的属性值如果偏离默认值或被用户更改，则以粗体显示。
简短说明
如果属性被选中，则会在属性窗口的下部显示该属性的简短说明。
无效输入
按回车键或离开输入框时，无效输入会立即恢复；同时还会输出相应的错误信息。
无效布线
通过属性 "错误信息 "上的红色感叹号可以识别无效布线。
使用快捷菜单重置值
右击属性可打开属性的快捷菜单。菜单选项 "Reset（重置）"可用于将用户更改的属性重置为初始值。
In the visual editor, the properties of components can be viewed and (for the most part) edited in the properties window.
•Properties of the image acquisition
•Properties of a vision function
•Properties of a Inputs
•Properties of a Outputs
•Properties of a Variables
•Properties of a Wirings
This section describes general operation of the properties window.
Sorting
Properties can be sorted according to category or alphabetically. It is possible to switch back and forth from the header of the properties window.

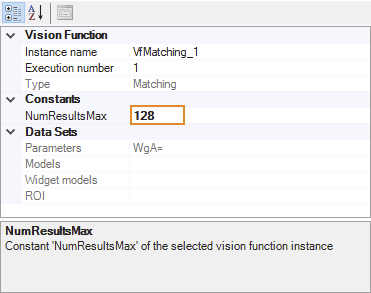

Highlighted modified properties
Selected property values that deviate from the default value or have been changed by the user are shown in bold.

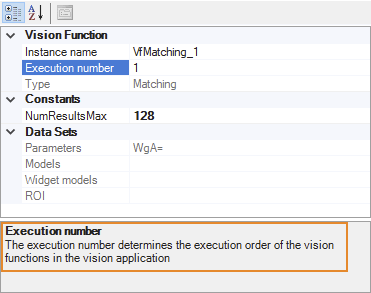

Short description
If a property is selected, a short description of it is displayed in the lower area of the properties window.

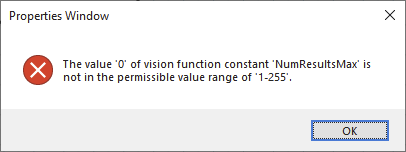

Invalid input
Invalid input is immediately reverted when pressing Enter or leaving the input field; an appropriate error message is also output.

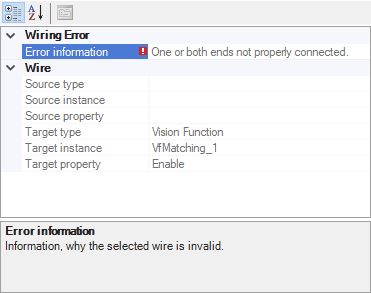

Invalid wiring
Invalid wiring can be recognized by the red exclamation point on property "Error info".

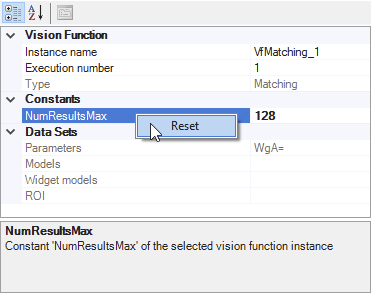

Resetting values using the shortcut menu
A property's shortcut menu is opened by right-clicking on the property. Menu option "Reset" can be used to reset a property changed by the user to its original value.
