格式化
可编辑的参数输入和视觉功能过程变量的背景为深色。不能编辑的输出和输入则为浅色背景。
图可编辑字段和不可编辑字段的格式不同。
配置集成照相机闪光灯照明区段
可在 mapp Vision HMI 应用程序中直观地配置用于集成摄像机照明的 LED 段。点击相关过程变量FlashSegment(n) 的输入字段后，将出现对话框"FlashSegment 配置"，其中包含用于选择 LED 段的复选框。
图在对话框 "FlashSegment 配置 "中，启用了摄像机照明的 LED 段 1（右）、2（上）、4（下），作为示例。
服务器繁忙
当视觉服务器处于活动状态时，会显示一个旋转的轮盘。当页面等待视觉服务器的响应时，所有交互都会被阻止。
Formatting
The inputs of parameters and vision function process variables that can be edited have a dark background. Outputs and inputs that cannot be edited have a light background.

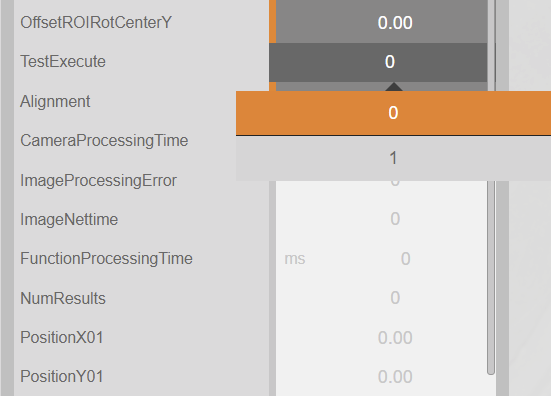

Fig.: Editable and non-editable fields have different formatting.
Configuring segments of the integrated camera flash lighting
The LED segments used for the integrated camera lighting can be intuitively configured in the mapp Vision HMI application. After clicking on the input field of the associated process variable FlashSegment(n), dialog box "FlashSegment configuration" appears with checkboxes for selecting the LED segments.

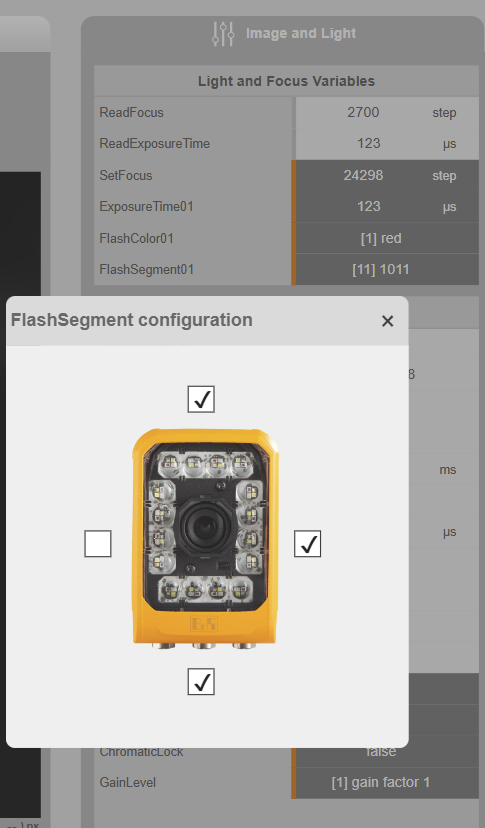

Fig.: In dialog box "FlashSegment configuration", LED segments 1 (right), 2 (top), 4 (bottom) of the camera lighting are enabled as an example.
Server busy
A spinning wheel is displayed while the vision server is active. All interactions are blocked while the page waits for the response from the vision server.
